TDL 1RB – Single Relay Board

The single 8amp relay board is a compact unit designed to be used as an interface between a low current switching device like an Access Control System door control board and a high powered locks.
This is a modular unit that can be used to switch a number of devices.
The contacts are rated at 8amps resistive up to 30Vdc.
There is also a diagnostic LED on the relay board to indicate that the relay is operated
The terminals are raising clamp type which will not damage the cables and can take up to a 2.5mm2 cable
The unit is based on a standard foot print so that it can be mounted with other TDL boards on the optional TDL Mounting Base to ensure a neat and tidy installation.

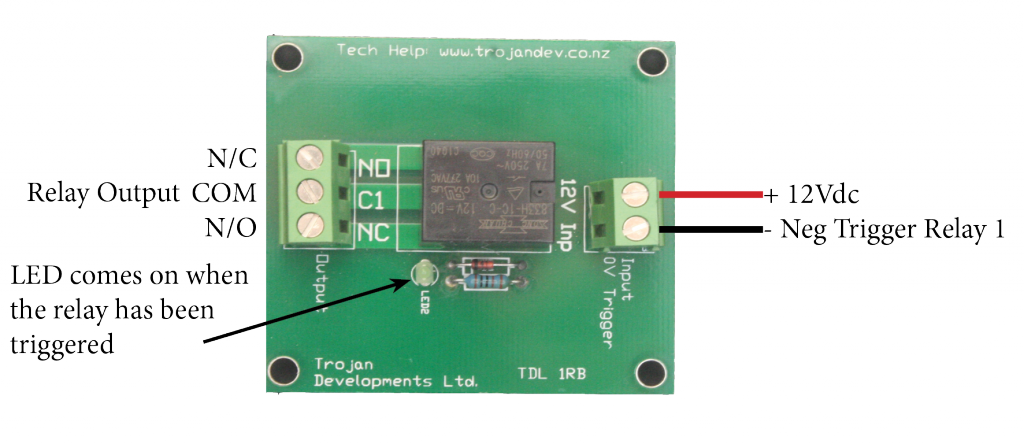

TDL 1RB

Specifications
