Press Rex®

Press Rex Exit Device – Green/Green

Categories: SKU: Press Rex G-G

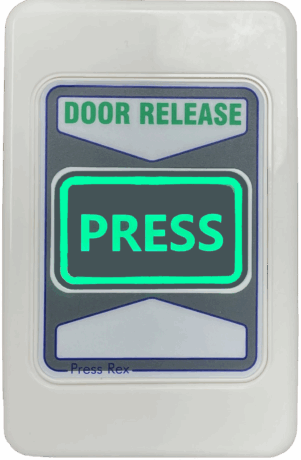

The Press Rex® (Press to Exit unit) is a request to exit device with an illuminated silicone push button that can be easily pressed and seen in areas of limited lighting.

Features

  • The Press Rex® has a large tactile button to give the user good feedback that the button has been pressed
  • The button is backlit green and changes to a solid green upon activation
  • Durable silicone button with embedded “PRESS” text
  • Built-in sounder to provide audible confirmation of operation
  • Easy to clean and fade resistant.
  • Fits the optional Vertical Double Surround with the Em Rex® unit for a full exit solution.
  • Fits the Vertical Double Flush Box
  • A Weather Protected version is also available

Specifications

  • Single gang profile fits a standard New Zealand and Australian electrical flush box (95mm H, 60mm W, 50mm D)
  • Power requirements: 10 to 30Vdc
  • Current draw: 100mA @ 13.6 Vdc
  • Two sets of Clean N/O and N/C outputs
  • The contacts are rated at 2A, 30Vdc
  • The silicone button is backlit
  • RCM & RoHS Certified
